Maestro Intro

TestingBot provides a grid of remote iOS simulators and Android devices + emulators, ready to run your Maestro flows.

Maestro is a mobile UI testing framework, which supports testing on both iOS and Android. You write flows, which are story-like tests, where you describe a specific flow in your mobile application. For example, you could have a login flow, or a checkout flow.

Maestro is a relatively new test framework and offers several nice features, such as:

  • Built-in tolerance to flakiness: various mechanisms are added to try and prevent flaky tests, for example locators that have changed or moved positions.
  • Automatic waits: Maestro will automatically wait for certain conditions, which means you do not have to worry about delays, or adding sleep commands to your tests.
  • Declarative syntax, which is defined in Flow (yaml) files.

Why TestingBot Cloud?

TestingBot has been offering cloud-based testing since 2012 and has built a robust solution for Maestro cloud testing. Compared to other vendors and Maestro cloud, we offer the following improved features:

  • Run on any iOS version, even beta versions. Currently iOS simulators (Apple Silicon M4).
  • Test on physical Android devices, not just emulators (though that's also certainly possible)
  • No execution limit: your tests can run as long as they need
  • Apply various options such as setting orientation, geolocation options and more

TestingBot CLI

The easiest way to run Maestro tests on TestingBot is using our CLI tool. It handles uploading your app, flows and running tests in a single command.

Installation

npm install -g @testingbot/cli

Authentication

Authenticate using this command:

testingbot login

This opens your browser for authentication. After logging in, your credentials are saved to ~/.testingbot and you can start using the CLI.

Other Authentication Methods

  • Command-line options: --api-key and --api-secret
  • Environment variables: TB_KEY and TB_SECRET
  • Config file: Create ~/.testingbot with content key:secret

Quick Start

Run Maestro tests with a single command:

testingbot maestro app.apk flow.yml --device "Pixel 8" --deviceVersion "14"

The CLI will:

  1. Upload your app to TestingBot
  2. Upload and zip your flow files
  3. Start the test run
  4. Show real-time progress and results

Upload Mobile App

You will need to upload a mobile app to run tests with Maestro. The format of this file depends on which device type you'd like to test:

  • iOS Simulators:

    You can upload your .zip file, see here how to prepare this zip file.

    Maestro does not yet provide support for physical iOS devices.

  • Android emulators/physical devices:

    Upload the .apk file, which TestingBot will automatically install on the Android device.

When using the CLI, the app upload is handled automatically as part of the testingbot maestro command. Simply specify your app file as the first argument:

testingbot maestro /path/to/app/file/sample-debug.apk ./flows

Supported app formats:

  • Android: .apk
  • iOS Simulator: .app, .zip (zipped .app bundle)
curl -u api_key:api_secret \
-X POST "https://api.testingbot.com/v1/app-automate/maestro/app" \
-F "file=@/path/to/app/file/sample-debug.zip"

The API response will include an id response, which you can use in the other API calls.

{
    "id": 4012
}

Upload Maestro Flows

To upload the Flows zip file, please follow the example below.

When using the CLI, flow files are automatically zipped and uploaded. You can specify:

  • A directory containing flow files
  • Individual .yaml or .yml files
  • A pre-zipped .zip file
  • Glob patterns (e.g., ./flows/**/*.yaml)
# Single directory
testingbot maestro app.apk ./flows

# Multiple directories
testingbot maestro app.apk ./flows/smoke ./flows/regression

# Individual flow files
testingbot maestro app.apk login.yaml checkout.yaml

# Pre-zipped flows
testingbot maestro app.apk flows.zip

Maestro Flow files are .yaml files which contain the actions that need to be performed. You can zip these together and upload to TestingBot by using the following command:

zip -r flows.zip *.yaml

Make sure all the necessary flows and sub flows are included in the zip file.

curl -u api_key:api_secret \
-X POST "https://api.testingbot.com/v1/app-automate/maestro/:id/tests" \
-F "file=@/path/to/app/file/flows.zip"

Replace the :id with the identifier you received during the app upload call. (In this example 4012)

Calling this multiple times with the same :id will overwrite the previously uploaded Flows zip file.

Zip structure

Maestro needs to know which flows it should run. If there are flow files (.yaml files) in the top-level directory of the zip file, it will run these flow files.

You can also include a config.yaml file in the top-level directory of the zip file, to indicate which flows should be tested. For example, you can use the ** annotation to indicate you want to run all flows, even if they are in separate sub-directories.

flows:
  - "**"

More information is available in the Maestro Docs.

Run Maestro tests

Once you've uploaded both your app and Flows zip file, you can run the Maestro tests on the TestingBot cloud.

Specify one or more capabilities, to indicate on which iOS simulators or Android devices you want to run your tests on.

Use the CLI to run tests with device selection options:

# Basic usage with device selection
testingbot maestro app.apk flow.yml --device "Pixel 8" --deviceVersion "14"

# iOS simulator
testingbot maestro app.zip ./flows --platform iOS --device "iPhone 16" --deviceVersion "26.0"

# Android real device
testingbot maestro app.apk flow.yml --device "Samsung Galaxy S24" --real-device

# With additional options
testingbot maestro app.apk ./flows \
  --device "Pixel 8" \
  --deviceVersion "14" \
  --name "Smoke Tests" \
  --build "v2.1.0"

Device Options

Option Description
--device <name> Device name (e.g., "Pixel 9", "iPhone 16")
--platform <name> Platform: Android or iOS
--deviceVersion <version> OS version (e.g., "14", "18.0")
--real-device Use a real device instead of emulator/simulator

See the Options page for more configuration options.

Select a device configuration below, then use the generated cURL command:

Replace the :id with the identifier you received during the app upload call. (In this example 4012)

When running Maestro tests on physical devices, a device could be occupied at times. You might want to use regex/wildcard patterns to target a broad range of devices.

We offer special parameters which you can use to allocate a device:

Regex Input Result
".*Galaxy.*" This will allocate any of the available Galaxy devices (phone or tablet)
"*" This will allocate a random available device, you can use this with the deviceName or version.

View Maestro Results

The results of your Maestro tests will be available in the TestingBot dashboard.

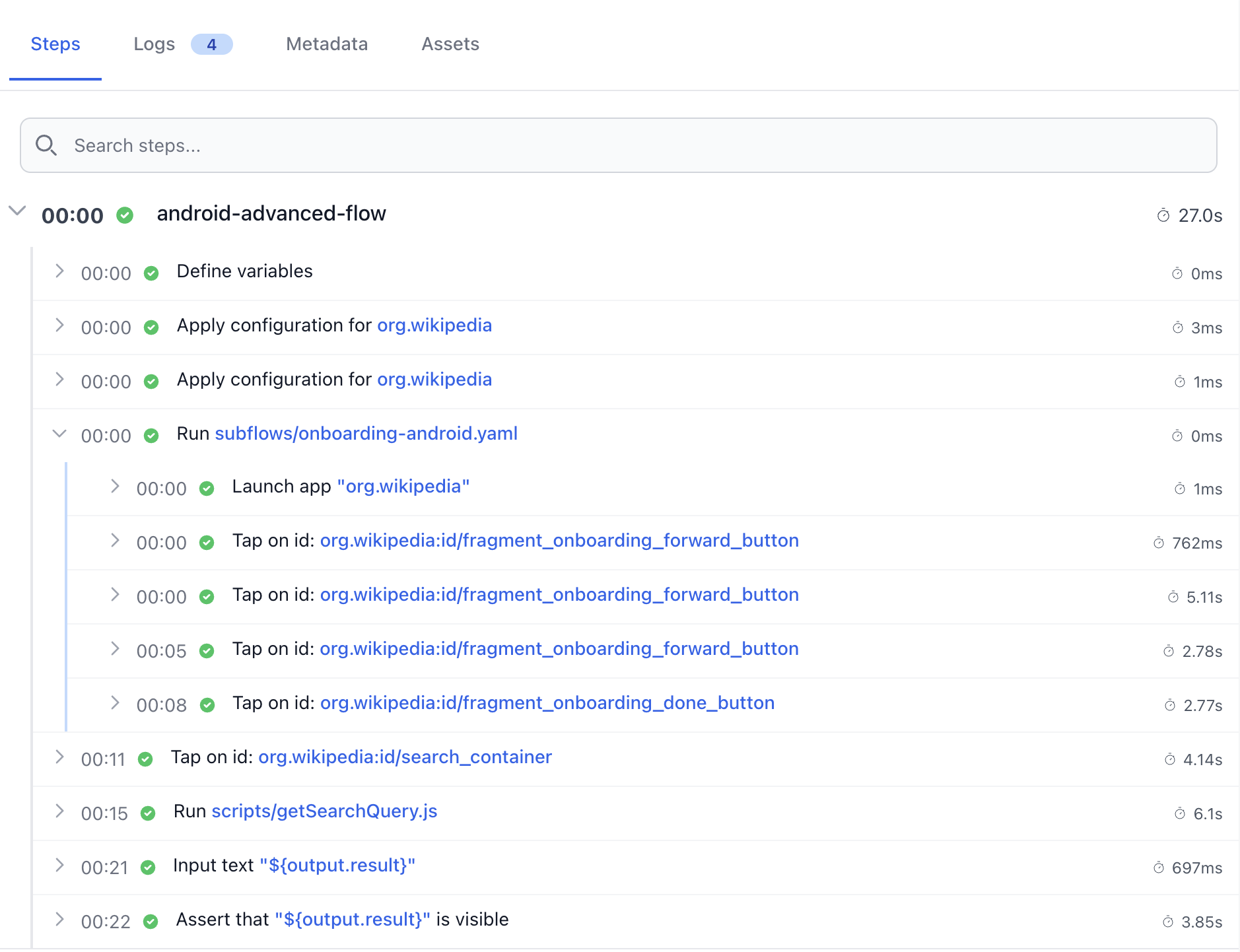

Each test result contains a video, test logs and other meta data generated during the test run. Maestro flows will be displayed, together with the steps that were taken during each flow.

Maestro results

You can also use the CLI or an API call to get back the result from the run(s):

By default, the CLI waits for test completion and displays real-time progress:

testingbot maestro app.apk ./flows --device "Pixel 8"

The CLI will show:

  • Upload progress for app and flows
  • Device allocation status
  • Live output from Maestro flows
  • Final pass/fail status

Async Mode

Use --async to start tests without waiting for results:

testingbot maestro app.apk ./flows --device "Pixel 8" --async

Download Artifacts

Download test artifacts (logs, screenshots, video) after completion:

testingbot maestro app.apk ./flows --device "Pixel 8" \
  --download-artifacts \
  --artifacts-output-dir ./artifacts
curl -u api_key:api_secret \
"https://api.testingbot.com/v1/app-automate/maestro/:project_id"

Replace the :project_id with the identifier you received during the app upload call. (In this example 4012)

The response will contain a success boolean, indicating whether the test passed or failed.

Example response:
{"runs":[{"id":14019,"status":"DONE","capabilities":{"version":"15.0","deviceName":"Pixel 9","platformName":"Android"},"success":0,"report":"...","created_at":"2025-08-26T10:30:42.000Z","test":{"sessionId":"0255832ee646-e7620dc7d449-172937ccfc2d-175620408997-95145830","environment":{"name":"chrome","os":"Pixel 9 - 15.0","version":"15.0"}}}],"success":false,"version":"1.0","completed":true}

You can poll this request to check if the tests have finished running. The completed boolean will be set to true when all tests have finished.

JUnit Report

All Maestro tests on TestingBot will by default run with a JUnit reporter. This report is accessible programmatically:

Download the JUnit report automatically after test completion:

# Download JUnit XML report
testingbot maestro app.apk ./flows --device "Pixel 8" \
  --report junit \
  --report-output-dir ./reports

The report will be saved to the specified directory with a filename based on the test run.

curl -u api_key:api_secret \
"https://api.testingbot.com/v1/app-automate/maestro/:project_id/:run_id/junit_report"

Replace the :project_id with the identifier you received during the app upload call. (In this example 4012)

Replace the :run_id with the identifier for this run.

The response will contain a report string value that contains the XML formatted JUnit report.

Webhooks

Because the Maestro tests run asynchronously, you might want to get notified when a test run has finished. You can poll the results API or use the Webhook integration or Slack integration to get notified when a test run has finished.

Example Maestro Flow

Below is a simple example Flow, where we input two values in the TestingBot example app:

appId: org.reactjs.native.example.SampleApp
---

- launchApp

- tapOn:
    id: inputA

- longPressOn:
    id: inputA

- tapOn:
    text: "Select All"

- eraseText

- inputText: "10"

- tapOn:
    id: inputB

- longPressOn:
    id: inputB

- tapOn:
    text: "Select All"

- eraseText

- inputText: "5"

- tapOn:
    id: sum

- assertVisible:
    text: "15"

Maestro Parallel Testing

The TestingBot physical and virtual device grid is optimised to run many tests concurrently. You can run multiple Maestro tests simultaneously (in parallel), which will drastically shorten your total test duration.

Depending on your subscription plan, you will be able to run 1 or more Maestro tests at the same time. If you exceed the threshold, additional Maestro tests will be queued until a slot becomes available.

For example, let's assume you have an Automation Pro plan with 2 concurrent tests. And you want to run 10 Maestro tests, or run the same Maestro test on 10 different device configurations:

  • 2 Maestro tests will run simultaneously
  • The other 8 are waiting (queued) until one of the first two finishes
  • When a slot frees up, the next Maestro test in the queue will start to run
  • Finally, when all tests have run, you will see the results in the TestingBot dashboard

Currently there is no limit to the amount of Maestro tests you can add to the queue.

Integrations

TestingBot offers various integrations which allow for connecting your Maestro tests with external services. For example; you can receive automated Slack messages each time a Maestro test runs or fails, or you can integrate Maestro testing with any CI/CD system.

API

TestingBot provides a REST-API to retrieve information about your Maestro projects and runs.
