TestingBot Buildkite Plugin

Credentials

The plugin reads your TestingBot key and secret from the TESTINGBOT_KEY and TESTINGBOT_SECRET environment variables on the Buildkite agent. Never put these values in your pipeline YAML; provide them through an agent environment hook, your secrets manager, or Buildkite secrets.

You can obtain both values from the TestingBot member area.

If your secrets are stored under different environment variable names, point the plugin at them with the api-key-env and api-secret-env options.

Set up the Plugin

Add the plugin to a step in your pipeline.yml:

steps:
  - label: "E2E tests"
    command: npm run test:e2e
    plugins:
      - testingbot/testingbot#v1.0.0: ~

That's it — with the default configuration the plugin starts a tunnel before npm run test:e2e, stops it afterwards, updates the status of every TestingBot session started by your tests and posts a results annotation on the build.

Everything is configurable, for example:

steps:
  - label: "E2E tests"
    command: npm run test:e2e
    plugins:
      - testingbot/testingbot#v1.0.0:
          tunnel-identifier: "%job-id%"
          tunnel-args:
            - "--nocache"
          tunnel-ready-timeout: 180

Or, if you only want status updates and annotations without a tunnel:

steps:
  - label: "E2E tests"
    command: npm run test:e2e
    plugins:
      - testingbot/testingbot#v1.0.0:
          tunnel: false

TestingBot Tunnel

The tunnel is a Java application: the Buildkite agent needs Java 11 or higher (17 LTS recommended) on its PATH. The plugin downloads the tunnel once and caches it on the agent.

There are two ways to route your tests' traffic through the tunnel:

1. Point your tests at the tunnel's local relay, http://localhost:4445/wd/hub, instead of https://hub.testingbot.com/wd/hub. You can move the relay to another port with tunnel-args: ["--se-port", "8446"].
2. Keep using https://hub.testingbot.com/wd/hub and configure a tunnel-identifier on the plugin. Your tests then pass the same value as the tunnel-identifier capability in tb:options. The plugin exports the identifier as $TESTINGBOT_TUNNEL_IDENTIFIER, with %job-id% replaced by the Buildkite job id — recommended for parallel jobs.

The plugin waits for the tunnel to be ready before your command runs, and fails the step with the tunnel log if the tunnel could not be started.

Example Test

The plugin exports $TESTINGBOT_BUILD (defaults to pipeline-slug-build-number) and, when configured, $TESTINGBOT_TUNNEL_IDENTIFIER. Use them in your test's capabilities so TestingBot groups all sessions of this Buildkite build together:

#!/usr/bin/env ruby

require 'rubygems'
require 'selenium-webdriver'

options = Selenium::WebDriver::Chrome::Options.new
options.add_option('platformName', 'WIN11')
options.add_option('browserVersion', 'latest')
options.add_option('tb:options', {
  'key' => ENV['TESTINGBOT_KEY'],
  'secret' => ENV['TESTINGBOT_SECRET'],
  'name' => 'Buildkite Test',
  'build' => ENV['TESTINGBOT_BUILD'],
  'tunnel-identifier' => ENV['TESTINGBOT_TUNNEL_IDENTIFIER']
})

driver = Selenium::WebDriver.for(
  :remote,
  url: "https://hub.testingbot.com/wd/hub",
  options: options)
driver.navigate.to "http://localhost:8080"
puts driver.title
driver.quit

import os
from selenium import webdriver
from selenium.webdriver.chrome.options import Options

options = Options()
options.set_capability('platformName', 'WIN11')
options.set_capability('browserVersion', 'latest')
options.set_capability('tb:options', {
  'key': os.environ['TESTINGBOT_KEY'],
  'secret': os.environ['TESTINGBOT_SECRET'],
  'name': 'Buildkite Test',
  'build': os.environ.get('TESTINGBOT_BUILD'),
  'tunnel-identifier': os.environ.get('TESTINGBOT_TUNNEL_IDENTIFIER')
})

driver = webdriver.Remote(
    command_executor='https://hub.testingbot.com/wd/hub',
    options=options
)
driver.get("http://localhost:8080")
print(driver.title)
driver.quit()

import org.openqa.selenium.WebDriver;
import org.openqa.selenium.chrome.ChromeOptions;
import org.openqa.selenium.remote.RemoteWebDriver;

import java.net.URL;
import java.util.HashMap;
import java.util.Map;

public class BuildkiteTest {

  public static final String KEY = System.getenv("TESTINGBOT_KEY");
  public static final String SECRET = System.getenv("TESTINGBOT_SECRET");
  public static final String URL = "https://hub.testingbot.com/wd/hub";

  public static void main(String[] args) throws Exception {
    ChromeOptions options = new ChromeOptions();
    options.setCapability("browserVersion", "latest");
    options.setCapability("platformName", "WIN11");

    Map<String, Object> tbOptions = new HashMap<>();
    tbOptions.put("key", KEY);
    tbOptions.put("secret", SECRET);
    tbOptions.put("name", "Buildkite Test");
    tbOptions.put("build", System.getenv("TESTINGBOT_BUILD"));
    tbOptions.put("tunnel-identifier", System.getenv("TESTINGBOT_TUNNEL_IDENTIFIER"));
    options.setCapability("tb:options", tbOptions);

    WebDriver driver = new RemoteWebDriver(new URL(URL), options);
    driver.get("http://localhost:8080");

    System.out.println(driver.getTitle());

    driver.quit();
  }
}

const webdriver = require('selenium-webdriver');
const chrome = require('selenium-webdriver/chrome');

async function runBuildkiteTest () {
  let options = new chrome.Options();
  options.set('platformName', 'WIN11');
  options.set('browserVersion', 'latest');
  options.set('tb:options', {
    'key': process.env.TESTINGBOT_KEY,
    'secret': process.env.TESTINGBOT_SECRET,
    'name': 'Buildkite Test',
    'build': process.env.TESTINGBOT_BUILD,
    'tunnel-identifier': process.env.TESTINGBOT_TUNNEL_IDENTIFIER
  });

  let driver = new webdriver.Builder()
    .usingServer('https://hub.testingbot.com/wd/hub')
    .withCapabilities(options)
    .build();
  await driver.get("http://localhost:8080");
  const title = await driver.getTitle();
  console.log(title);
  await driver.quit();
}
runBuildkiteTest();

Reporting Sessions to the Plugin

For status updates and annotations, the plugin needs to know which TestingBot sessions belong to the build step. There are two mechanisms, checked in this order:

1. Sessions file

Append each WebDriver session id to the file named by $TESTINGBOT_SESSIONS_FILE (default testingbot-sessions.txt in the checkout), one per line, optionally followed by a per-test status and name:

<session-id> [passed|failed] [test name]

For example in a WebdriverIO afterSession hook:

afterSession: async function (config, capabilities, specs) {
  const status = global.testFailed ? 'failed' : 'passed';
  fs.appendFileSync(process.env.TESTINGBOT_SESSIONS_FILE,
    `${browser.sessionId} ${status} ${specs[0]}\n`);
}

Per-line statuses override the step outcome, giving you accurate per-test results. This mechanism is recommended when multiple parallel Buildkite jobs share one build.

2. Build capability

Alternatively, set the build capability of your tests to $TESTINGBOT_BUILD, as shown in the example above. The plugin then finds the sessions through the TestingBot API, without any code changes to your tests.

Test Statuses

After your command finishes, the plugin marks every reported session as passed or failed on TestingBot:

• If the build step succeeded, sessions are marked as passed.
• If the build step failed, sessions are marked as failed.
• A per-line passed/failed status in the sessions file always takes precedence.

Each test's status message links back to the Buildkite build, so you can navigate from a test on TestingBot straight to the build that ran it. Set update-status: false to disable this behavior.

Build Annotations

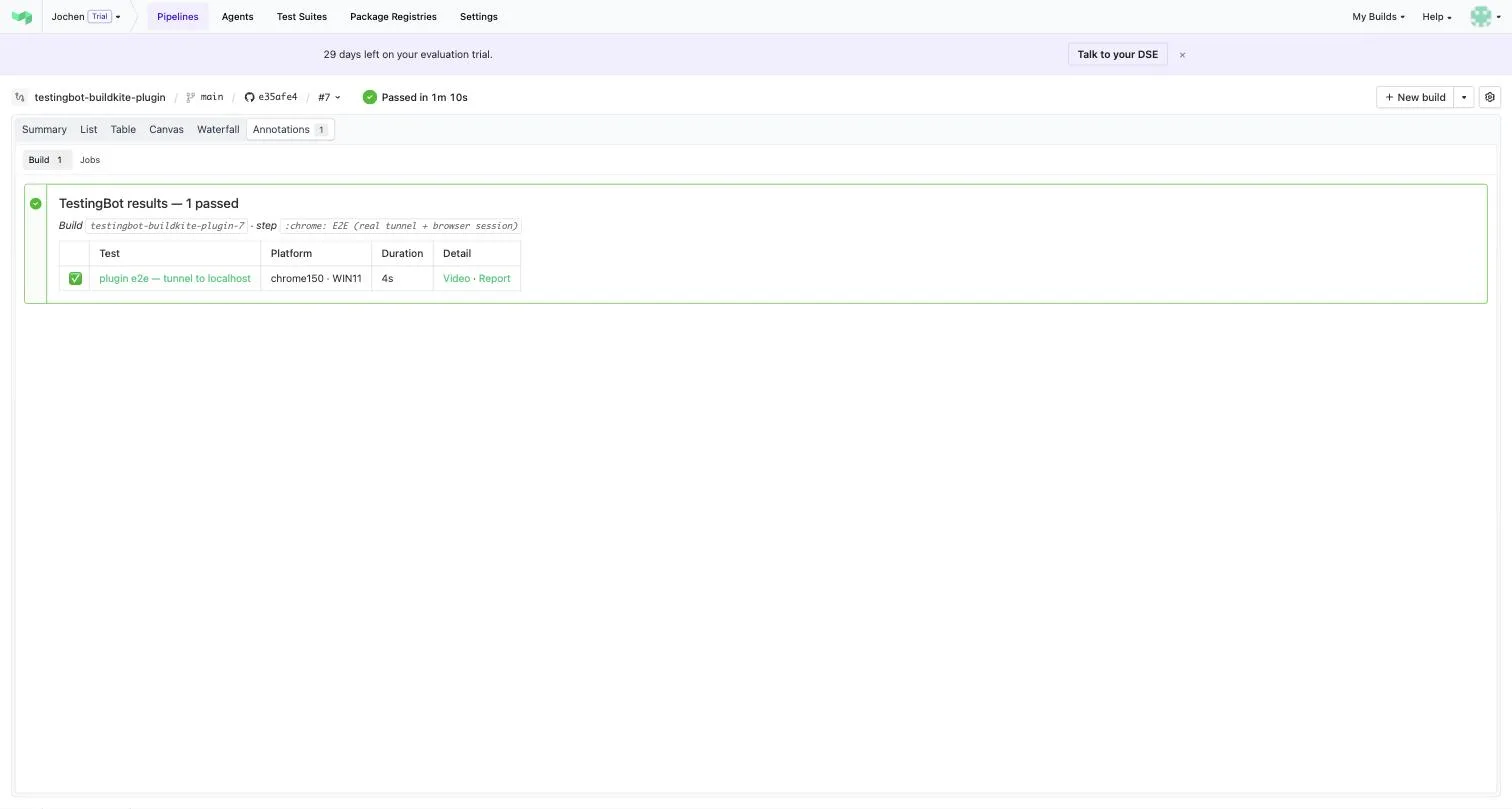

The plugin annotates the Buildkite build with a results table: pass/fail per test, platform, duration, and links to the report and video of each test on TestingBot.

Failed tests get a collapsible detail section, with a screenshot of the failure uploaded as a Buildkite artifact.

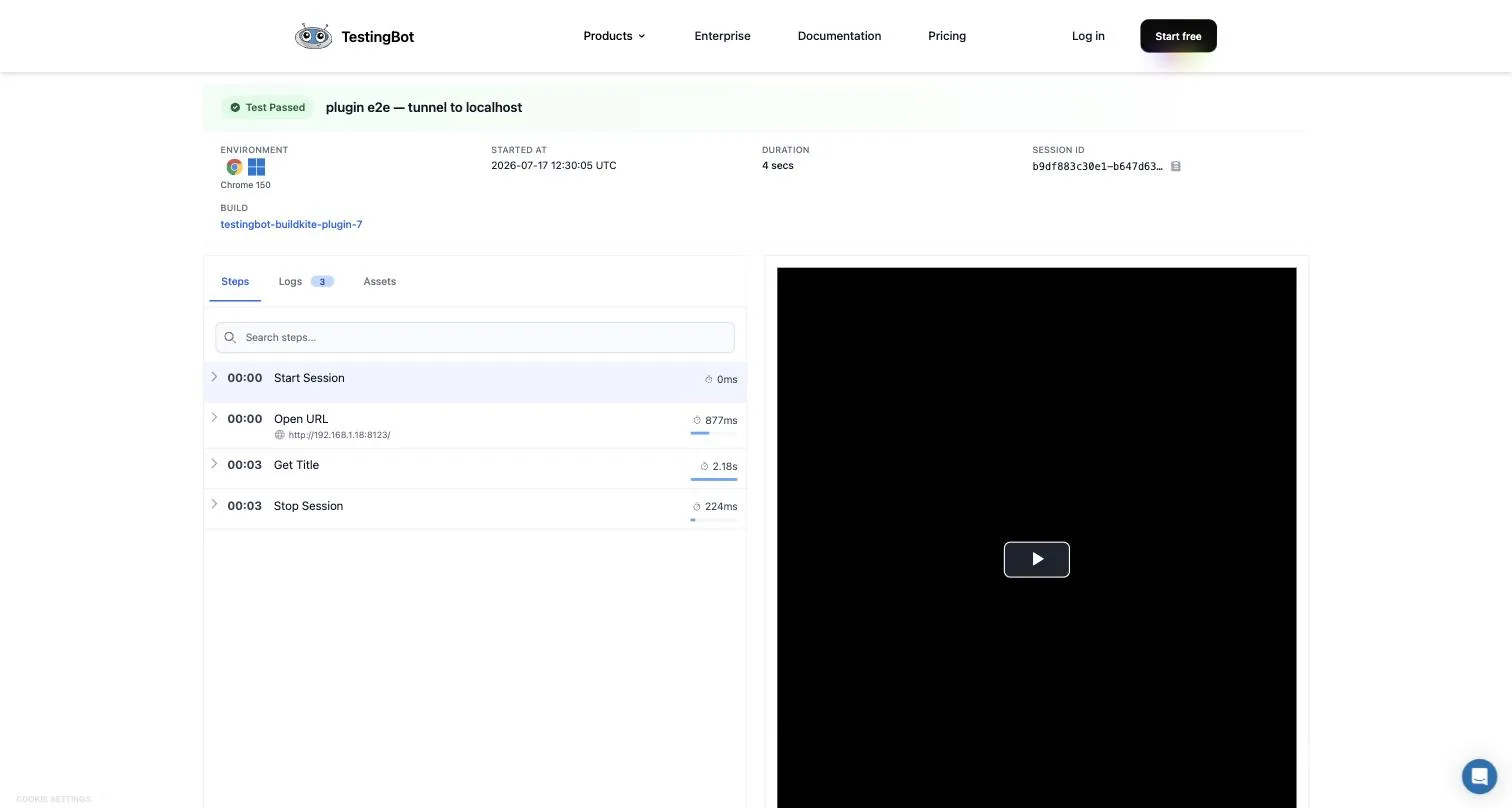

By default, links in the annotation use TestingBot share URLs: anyone who can see the Buildkite build page can open the test report and video without a TestingBot login. The share hash only grants view access to that specific test. Set share-links: false to use links that require a TestingBot login instead.

Configuration

The TestingBot Buildkite Plugin accepts the following configuration options:

Artifacts

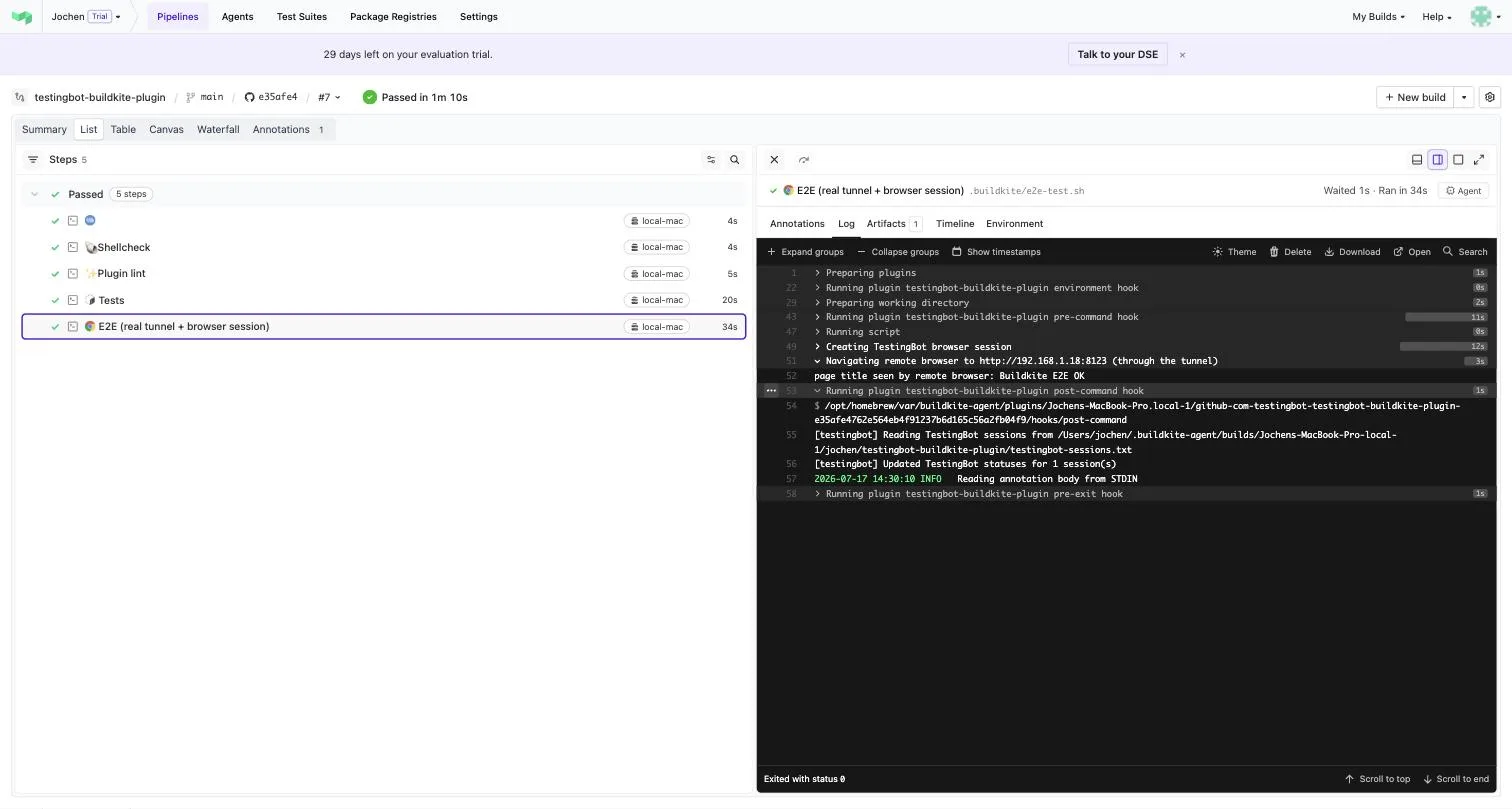

The plugin uploads the tunnel log as a Buildkite artifact for every job, so you can inspect what happened with the TestingBot Tunnel. When a test fails, its failure screenshot is uploaded as an artifact as well and embedded in the build annotation.

More Information

The plugin is open source and listed in the Buildkite plugins directory. More information, including framework examples and the full changelog, is available in the TestingBot Buildkite Plugin repository.
